BIT-02

Border control mobile BIT-02 ensures the work of officials during the implementation of established procedures and operations for checking citizens and documents, provided that the appropriate specialized software is installed.
Fully rugged Automated workplace Border control mobile BIT-02Fully rugged Automated workplace Border control mobile BIT-02

Fully rugged Automated workplace Border control mobile BIT-02

Fully rugged Automated workplace Border control mobile BIT-02 is designed to automate the activities of officials of the State Border Service of Ukraine to perform functions related to checking citizens when crossing the state border of Ukraine.

Border control mobile BIT-02 ensures the work of officials during the implementation of established procedures and operations for checking citizens and documents, provided that the appropriate specialized software is installed.

Specification Parameter

Basic parameters
  • Dimension 228mm(H)x137mm(W)x13.3mm(D)
  • Weight device unit 620g
  • Device Color black
  • LCD 8-inch, resolution: 1920*1200 pixel, 400 nit
  • Touch Panel 10 point capacitive touch screen
  • Camera Front 5.0MP Rear 8MP
I/O
  • TF *1, up to 256GB
  • SIM*1
  • USB TYPE-A *2
  • Micro USB *1
  • HDMI *1
  • 10/100/1000M(USB3.0 Transfer) x1
  • POGO PIN *2
  • Power AC100V ~ 240V, 50Hz/60Hz, Output DC 5V/3A
Performance parameter
  • CPU Intel® Atom™ x5-Z8350 /N5100 /I5-8200Y
  • OS windows 10 home/pro/iot
  • RAM 4GB，Optional 8GB/16GB
  • Storage 64GB，Optional 128GB/256GB/512GB
Battery
  • Capacity 8000mAh
  • Type Rechargeable Li-polymer battery
Endurance
  • 10hrs ( 50% volume sounds, 200 lumens 1080P HD video
  • display by default )
Network connections
  • WIFI 802.11 a/b/g/n/ac (2.4G/5.8G)
  • Bluetooth BT4.2
  • 4G
  • LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28，LTE-TDD: B40
  • WCDMA: B1/B5/B8，GSM: B3/B8
  • GNSS Built-in, GPS, Glonass, Beidou
Reliability
  • Operate Temperature-20 °C ~ 50 °C
  • StoreTemperature-20 °C ~ 70 °C
  • Humidity 95% Non-Condensing
  • Rugged Feature IP67 certified, MIL-STD-810G certified
  • Drop Height 1.2m drop
Data Collection
  • OCR Swipe Reader with next reading capabilities: ICAO compliant travel documents in near infrared (IR) per ICAO 9303 specification Parts 1-4 (2- and 3-line MRZ), ISO-18013 driving licenses (1-line MRZ)
  • Fingerprint reader: Glass covered Thin Film Transistor sensor; Scanning Area 38.1 mm x 20.32 mm; Image
Accessories

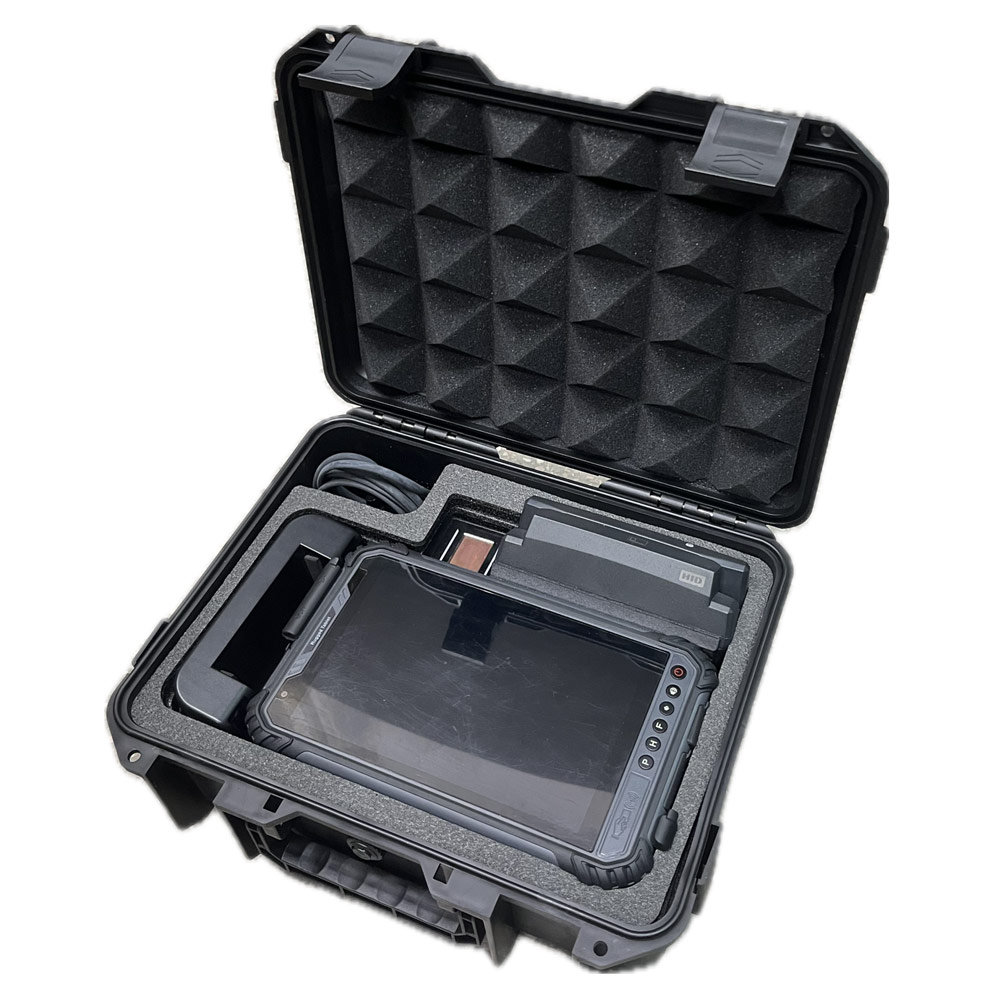

  • Protected Case
  • Doc Stations
  • Handle/Sholder Strip
  • Vehicle Mount
  • Car Charger
