Hosoton Q13

Industrial 13inch Rugged Windows 11 Tablet PC With I5 I7 Intel Processor
Hosoton Q13Hosoton Q13
Hosoton Q13
Hosoton Q13
Hosoton Q13
Hosoton Q13
Hosoton Q13

Industrial 13inch Rugged Windows 11 Tablet PC With I5 I7 Intel Processor

Hosoton Q13

The Hosoton Q13 Windows rugged computer come with the large 13.3" sunlight-readable FHD display allows for a premium viewing experience no matter where your work occurs. With powerful Intel Core I5/I7 12th CPU configurations, the design of IP65 protection, multiple wireless connectivity options, and versatile data capture modules, every task can be completed reliably.

And Q13 is built to be out in the field in rugged environments such a manufacturing floors, construction sites, automotive repair shops, assembly lines, or in agriculture. Take the tablet with you wherever you go and stay connected to customers, back-of-house staff, your ERP, or your inventory management system while having high performance computing in the palm of your hands.

High Performance with Intel's CPU

The Q13 equipped with Intel core I5-1235U/I7-1255U processor provides the enough performance to run multimedia applications smoothly and without interference. The Q13 supports the latest Windows® 11 IoT Enterprise operating system to fulfill increasing industrial applications requirements and offer an alternative solution for those between general consumer-grade and extremely rugged solutions.

Real-Time Data and Wireless Connectivity

Real-time data access to the correct information is crucial for mobile workers. The Q13 offers GPS, GLONASS, WLAN, BT, and optional 4G LTE to enable robust communications anytime and anywhere. With a built-in 13MP Auto-focus Camera w/ LED Flash on the rear side, users can capture photos, videos, documents instantly or utilize the front 5.0 MP camera for applications such as self-video recording or video communications.

Rugged Design in Mobile Form Factor

The Q13 rugged tablet is designed to be tough and rugged, withstanding shock, vibration, and drop up to 4 ft. according to military standard MIL-STD-810H for operations in some of the harshest environments. Damage and scratch, corning Gorilla glass provide a extra layer of protection to Q13 tablet

Brilliant 13.3" Display with Ultimate Touch Capability

The 13.3" series features projected capacitive (PCAP) multi-touch for the best user experience and allows switching windows, taking snapshots, zooming in, and rotating objects easily to take full advantage of the touch interface. Supports Rain, Glove, Stylus modes.

Versatile Accessories for Industry Applications

The high performance tablet PC comes standard with multiple data collection features, including USB 3.2 ports, ethernet RJ45 port, serial RS-232 port, high-definition camera, location GPS. The charging system is distinct to the interfaces by one DC-In power jack. In addition, we offer a variety of docking station able to charge the tablet: desktop cradle, wall-mount cradle, or in-vehicle mounting.

This tablet also has additional options for a Fingerprint Reader, NFC, 1D/2D barcode scanner, Serial port, Ethernet port, or an extra USB port along with a variety of docking stations on the desk or in the vehicle.

Function

·
  • IP65 protect + 1.2M Drop | Durable display with Gorilla glass III | Intel CPU
  • Windows 11 customizable OS
  • Rugged: IP65 rated, and 1.2 m drop
  • Long-lasting embedded 16000mAh/3.8V battery
  • Support 4G,Bluetooth , Wi-Fi
  • Thin & lightweight design for easy portability
  • Fanless & low power consumption design
  • Cradle and hand strap for customer needs
Hosoton Q13

Technical data

Operation System
OS Windows 10/11 home/pro/iot
CPU Intel Core i5-1235U/I7-1255U
Memory 8GB/16GB+128GB/256GB/512GB
Languages support English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages
Hardware specification
Screen Size 13.3 inch 1920 x 1200 display,up to 500 nits (1000nits optional)
Touch Panel Gorilla glass III with 10 points Capacitive Touch Screen
Buttons / Keypad Power key, volume +/-
Camera Front 5 megapixels, rear 13 megapixels, with flash and auto focus function
Indicator Type LED, Speaker, Vibrator
Battery Rechargeable li-ion polymer, 16000mAh/3.8V
Symbologies
HF RFID Support HF/NFC Frequency 13.56MhzISO/IEC14443,ISO/IEC15693,MIFARE,FelicaRead distance:3-5cm,Front
UHF Optional
Fingerprint scanner Optional
Bar code scanner Optional
High precision GNSS module (optional) Sub meter level,positioning accuracy:0.25-1 seconds,Support Beidou、GPS、GLONASS
Communication
Bluetooth® Bluetooth®4.2
WLAN Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency
WWAN GSM: 850,900,1800,1900 MHz
WCDMA: 850/1900/2100MHz
LTE:B1/B2/B3/B4/B5/B7/B8/B28
TDD-LTE :B40
GPS GPS/BDS/Glonass, error range ± 5m

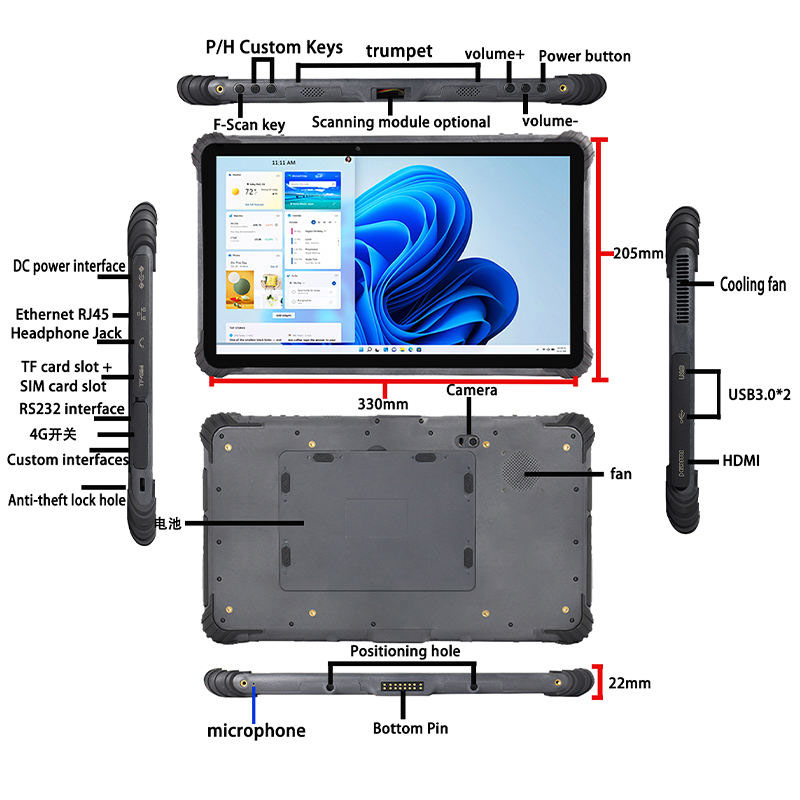

I/O Interfaces
USB USB TYPE-A*2 ,Type-C*1
POGO PIN Back 16PIN POGO PIN *1Bottom 8PIN POGOPIN *1
SIM Slot Single SIM Slot
Expansion Slot MicroSD, up to 256 GB
RJ 45 10/100/1000M x1
DB9 RE232 9-pin serial port x1
HDMI Support
Power DC 12V 4A ∮4mm power interface x1
Enclosure
Dimensions ( W x H x D ) 337*209*24mm
Weight 1500g (with battery)
Durability
Drop Specification 1.2m, 1.5m with boot case ,MIL-STD 810G
Sealing IP65
Environmental
Operating temperature -20°C to 50°C
Storage temperature - 20°C to 70°C (without battery)
Charging temperature 0°C to 45°C
Relative Humidity 5% ~ 95% (Non-Condensing)
What comes in the box
The standard package contents Q13 Device
USB Cable
Adaptor (Europe)

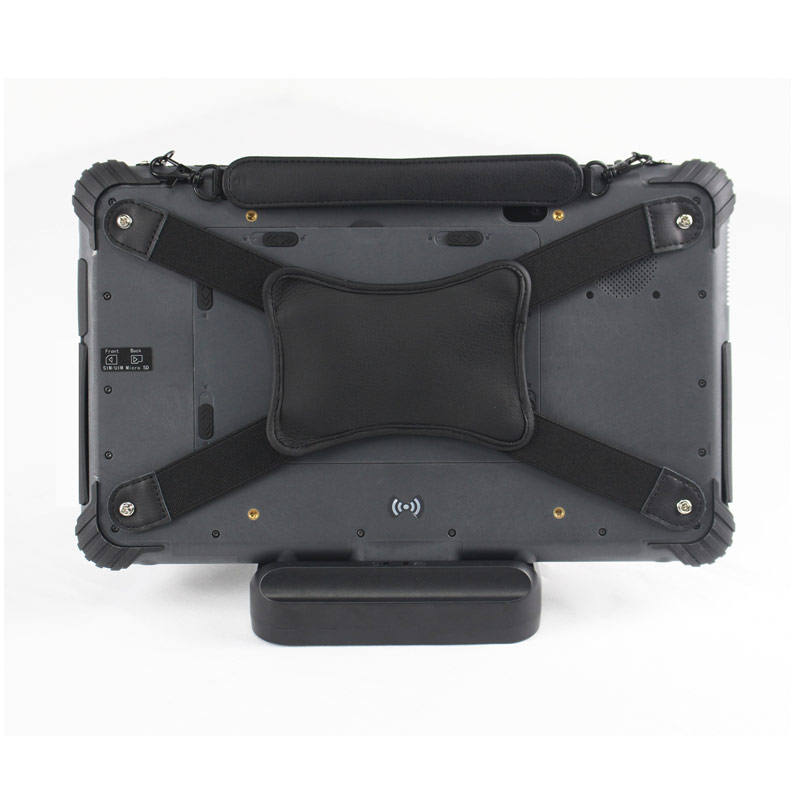

Optional Accessory Hand Strap
Charging docking
Vehicle mount
