Hosoton Q802

8 Inch Rugged WindowsTablet PC
Rugged Tablet Hosoton Q802Rugged Tablet Hosoton Q802
Rugged Tablet Hosoton Q802
Rugged Tablet Hosoton Q802
Rugged Tablet Hosoton Q802
Rugged Tablet Hosoton Q802

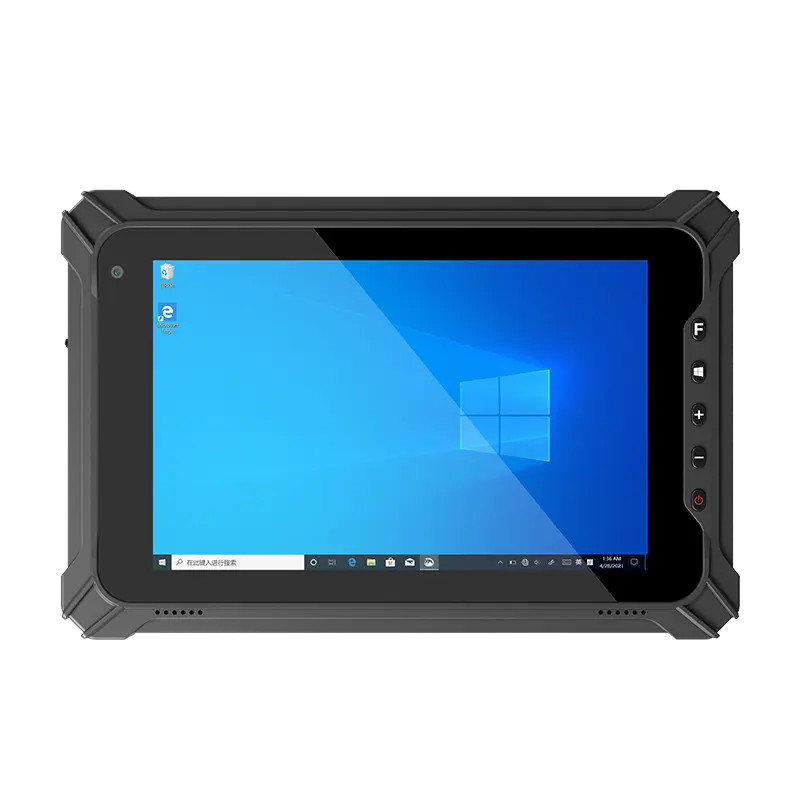

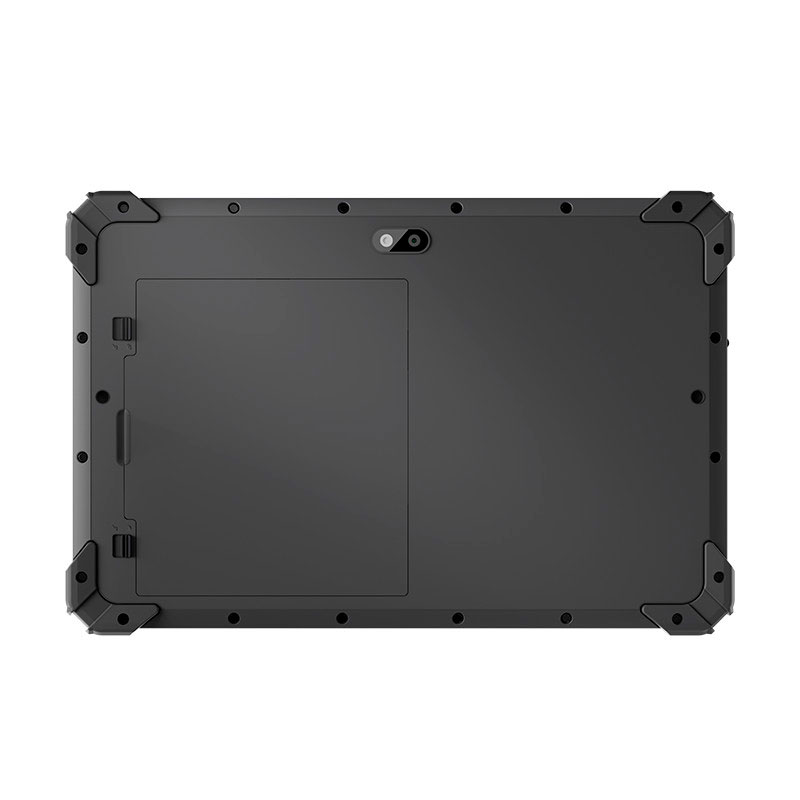

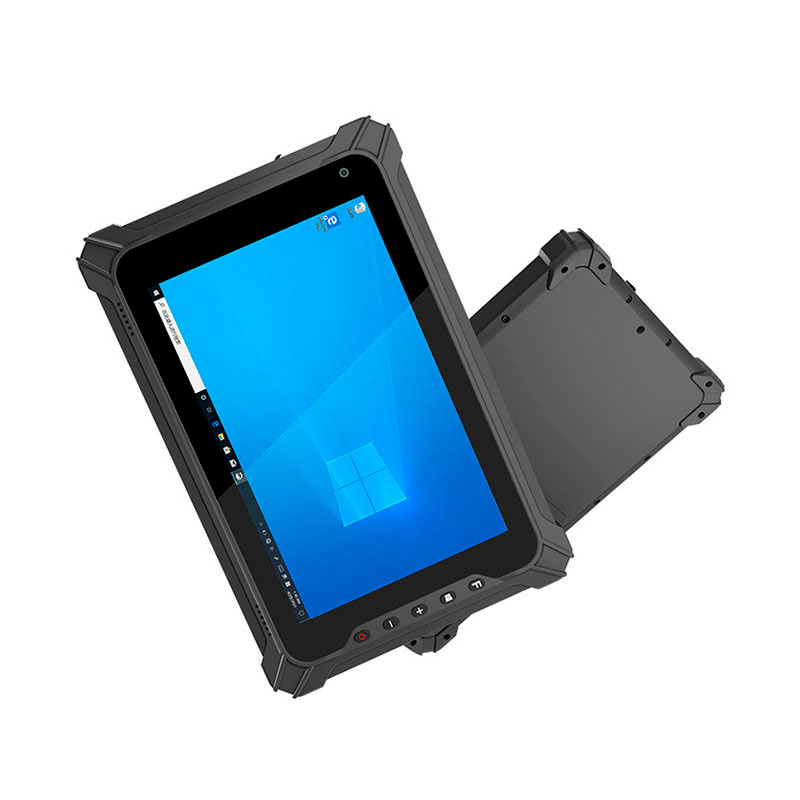

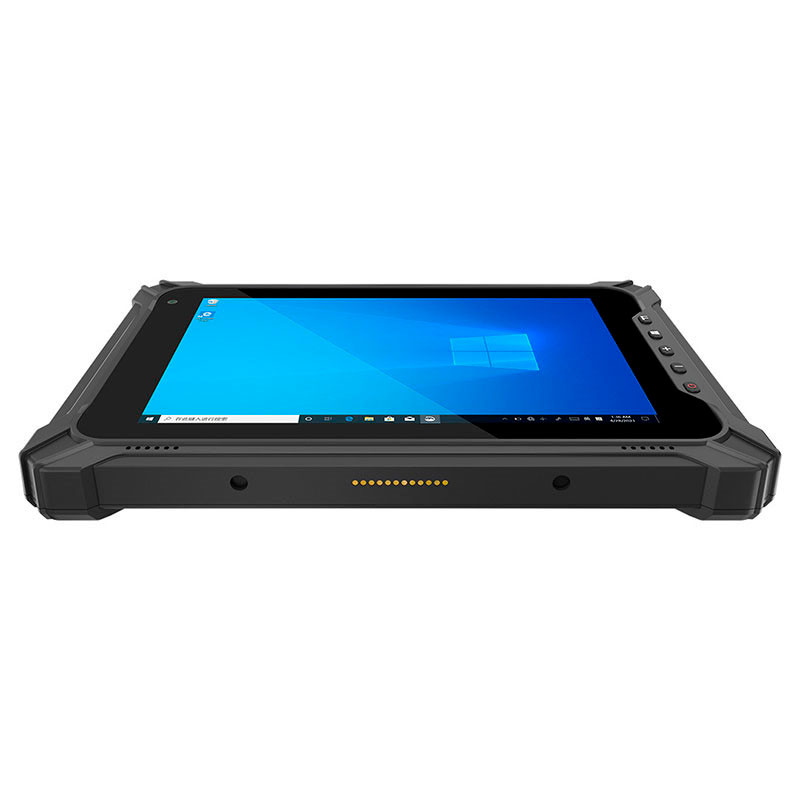

8inch Windows 10 Rugged Tablet PC

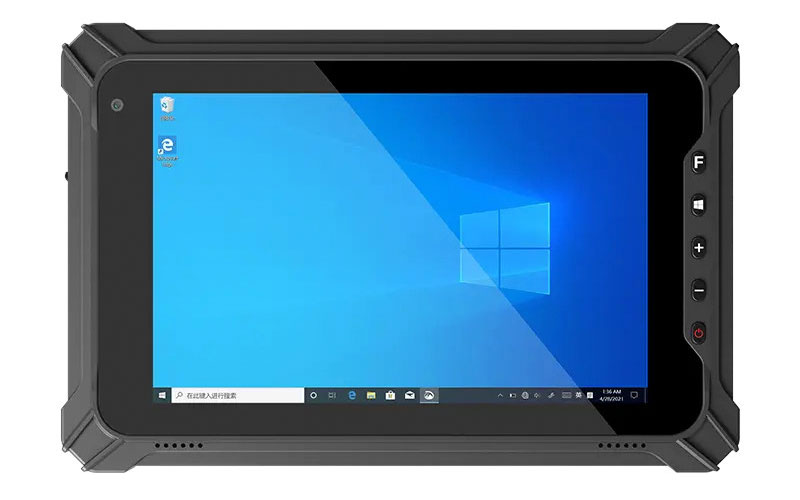

Hosoton Q802

Take the slim but durable tablet with portability for your market. Powered by a Windows 10 OS, the Hosoton Q802 is an unique lightweight tablet at just 910g, 20 mm thick for easy to move, and fortified with a tough outer casing and an environmental seal. This Q802 rugged tablet is designed with decent performance and great durable features for field service, warehousing, manufacturing, logistics, and transportation.

Tailored Design for harsh working condition

Engineered to perform in any environment, Q802 is rugged enough to drop from 1.2 meters onto concrete. Moreover, it has IP68 certification, completely sealing durable housing against dust and moisture to withstand water jets. Also Q802 comply with sturdy MIL-STD-810G military standards, boasting shock resistance and anti-vibration.

Stable wireless Connectivity for outdoor operation

Equipped with 4G network, Wi-Fi 802.11 a/b/g/n/ac and Bluetooth 4.2, the rugged 8 inch tablet fulfills high reliability for filed workers to get connected anywhere and offers real-time data transfer. It is easy and fast to record in the workplace with 8-megapixel rear camera and 5-megapixel front camera.

Brilliant 8" Display with Sunlight Readable

Come with a sunlight-readable, high brightness (550 nits) display that responds to the touch commands even with gloves and support wet-touch mode. Moreover, high performance and low power consumption features with Intel® Celeron® Processor N5100 processor, allows users to run multiple programs and works smoothly.

Versatile Accessories for industries application

The Q802 is equipped with multiple I/O ports (RJ45 Ethernet Port, USB3.0 port, SIM Card Reader, Micro SD, RFID UHF, Replaceable DC jack, Docking connector) and a wide variety of accessories to fit different usage scenarios. Includes various docking solutions such as desktop cradle, vehicle docking station, as well as expansion module options (NFC and RFID Reader, fingerprint scanner ,Infrared barcode scanner). The Q802 tablet supports stylus for quick and accurate on-screen inputs. Beside for more comfortable carrying , Q802 also support Hand Strap that is easily accessible and also helps in avoiding accidental drops.

Function

·
  • Windows 10
  • Intel Jasper Lake processor Celeron N5100
  • IP65 Waterproof and Dustproof, MIL-STD-810G certified
  • Enhanced rugged corners withstand shock and impact
  • High speed communication as 2.4G/5.8G WIFI,4G LTE, BT4.2 and etc
  • Thin & lightweight design for easy portability
  • Optional high performance 2D imager designed to data capture

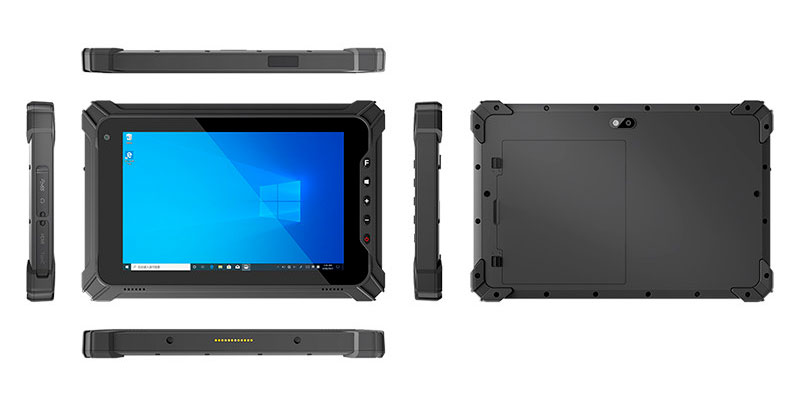

Захищений планшет Hosoton Q802

Technical data

Operation System
OS Windows 10 home/pro/iot
CPU Intel Jasper Lake processor Celeron N5100
Memory 4 GB RAM / 64 GB Flash (6+128GB optional)
Languages support English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages
Hardware specification
Screen Size 8 inch IPS screen, 1920×1200 TFT, 550nits
Touch Panel Gorilla glass III with 5 points Capacitive Touch Screen
Buttons / Keypad 5 Function Keys: Power key, volume +/-, home key, cutom key
Camera Front 5 megapixels, rear 8 megapixels, with flash and auto focus function
Indicator Type LED, Speaker, Vibrator

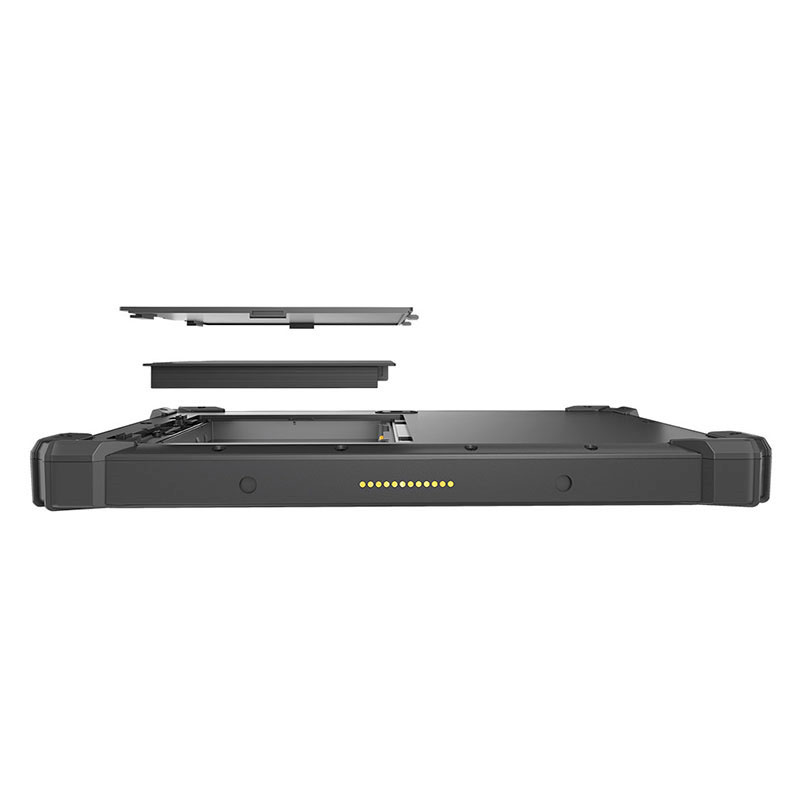

Battery Removable 5000mAh battery & New battery-free working mode
Symbologies
HF RFID Support HF/NFC Frequency 13.56MhzSupport: ISO 14443A&15693, NFC-IP1, NFC-IP2
Bar code scanner Optional
Communication
Bluetooth® Bluetooth®4.2
WLAN Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency
WWAN GSM: 850,900,1800,1900 MHz
WCDMA: 850/1900/2100MHz
LTE:LTE FDD: B1/B3/B7/B8/B20,LTE-TDD: B40
GPS GPS/BDS/Glonass, error range ± 5m
I/O Interfaces
USB USB 3.0 Type-A x 1, USB Type-C x 1,
POGO PIN 12pins Pogo Pin x 1
SIM Slot SIM Card, TF Card (Three in one card holder)
Expansion Slot MicroSD, up to 256 GB
Audio Φ3.5mm standard earphone jack x 1
RJ 45 Optional
HDMI *1
Power AC100V ~ 240V, 50Hz/60Hz, Output DC 19V/3.42A(Support power supply without battery adapter)
Enclosure
Dimensions ( W x H x D ) 236.7 x 155.7 x 20mm
Weight 950g (with battery)
Durability
Drop Specification 1.2m, 1.5m with boot case ,MIL-STD 810G
Sealing IP65
Environmental
Operating temperature -20°C to 50°C
Storage temperature - 20°C to 70°C (without battery)
Charging temperature 0°C to 45°C
Relative Humidity 5% ~ 95% (Non-Condensing)
What comes in the box
The standard package contents Q802 Device
USB Cable
Adaptor (Europe)
Optional Accessory Hand Strap
Charging docking
Vehicle cradle
Car charge
Shoulder Strap (Optional)
Carry Bag (Optional)
