Hosoton Q801
Hosoton Q801
8 Inch Rugged WindowsTablet PC
Hosoton Q801
8 Inch Rugged Tablet PC based on Intel Core i5 processor

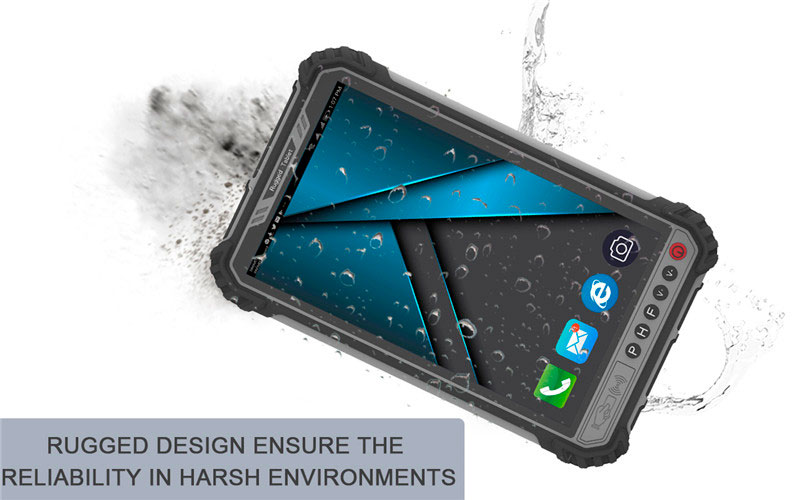

The Hosoton Q801 rugged tablets are housed in durable rubber, with raised corners that protect the tablet from drops and shocks. And it is MIL-STD-810G rated and IP65 waterproof rated, so rain and humidity will not damage the tablet. The Q801 also has a modular expansion port that comes standard with a RJ45 LAN port and has options for a 1D or 2D barcode scanner, a DB9 COM port, or an extra USB port. Other optional upgrade features include a fingerprint reader or NFC. These tablets also have a hot-swappable battery, so you can quickly swap a depleted battery for a charged one, and keep the tablet running 24/7..
The Q801 uses Intel® Atom™ x5-Z8350 (Cherry Trail) processor 1.44 GHz, up to 1.90 GHz with turbo boost technology with a fanless cooling system to provide stable performance and low power consumption. The Q801 supports the latest Windows® 10 IoT Enterprise operating system fulfill increasing industrial applications requirements and providing an alternative solution for those between general consumer-grade and extremely rugged solution..
Function
·- IP65 protect + 1.2M Drop | Durable display with Gorilla glass III | Inter CPU
- Windows 10 with Intel Processor Rugged Tablets
- 8” 1920 x 1200 IPS LED Panel with direct optical bonding
- Rugged: IP65 rated, and Rated for extreme temperature use
- Long-lasting embedded 8000mAh battery
- Support 4G,Bluetooth , Wi-Fi
- Optional 1D/2D Barcode Reader and HF RFID for data collection
- Optional expansion port for USB / RS232 connection
Technical data
| Operation System | |
| OS | Windows 10 home/pro/iot |
| CPU | Intel cherry trail Z8350 (core i5 optional),1.44Ghz-1.92GHz |
| Memory | 4 GB RAM / 64 GB Flash (6+128GB optional) |
| Languages support | English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages |
| Hardware specification | |
| Screen Size | 8 inch color 1920 x 1200 display，up to 400 nits |
| Touch Panel | Gorilla glass III with 10 points Capacitive Touch Screen |
| Buttons / Keypad | 8 Function Keys: Power, V+，V-，P, F, H |
| Camera | Front 5 megapixels, rear 13 megapixels, with flash and auto focus function |
| Indicator Type | LED, Speaker, Vibrator |
| Battery | Rechargeable li-ion polymer, 7800mAh |
| Symbologies | |
| HF RFID | Support HF/NFC Frequency 13.56MhzISO/IEC14443，ISO/IEC15693，MIFARE，FelicaRead distance：3-5cm，Front |
| Bar code scanner | Optional |
| Communication | |
| Bluetooth® | Bluetooth®4.2 |
| WLAN | Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency |
| WWAN | GSM: 850,900,1800,1900 MHzWCDMA: 850/1900/2100MHzLTE:B1/B2/B3/B4/B5/B7/B8/B28TDD-LTE :B40 |
| GPS | GPS/BDS/Glonass, error range ± 5m |
| I/O Interfaces | |
| USB | USB TYPE-A*2 ,Micro USB*1 |
| POGO PIN | Back 16PIN POGO PIN *1Bottom 8PIN POGOPIN *1 |
| SIM Slot | Single SIM Slot |
| Expansion Slot | MicroSD, up to 256 GB |
| Audio | One speaker with Smart PA (95±3dB @ 10cm), One receiver, Dual noise-cancelling microphones |
| RJ 45 | 10/100/1000M(USB3.0 Transfer) x1 |
| HDMI | Support |
| Power | DC 5V 3A ∮3.5mm power interface x1 |
| Enclosure | |
| Dimensions ( W x H x D ) | 228*137*13.3mm |
| Weight | 620g (with battery) |
| Durability | |
| Drop Specification | 1.2m, 1.5m with boot case ,MIL-STD 810G |
| Sealing | IP65 |
| Environmental | |
| Operating temperature | -20°C to 50°C |
| Storage temperature | - 20°C to 70°C (without battery) |
| Charging temperature | 0°C to 45°C |
| Relative Humidity | 5% ~ 95% (Non-Condensing) |
| What comes in the box | |
| The standard package contents | Q801 DeviceUSB CableAdaptor (Europe) |
| Optional Accessory | Hand StrapCharging dockingVehicle mount |
To order any model of Hosoton and install additional options and configurations, you can contact Versiya company by phone: (044) 299-85-05
Contact person - Yurii Ivankov, technical director of VERSIYA company,
